Currently ,we have design many typs smart side rgb led , which have been used for different applications, but some customer need more color , they need RGBW side led , so Normand led designed SK6805SIDE-FRGBW.

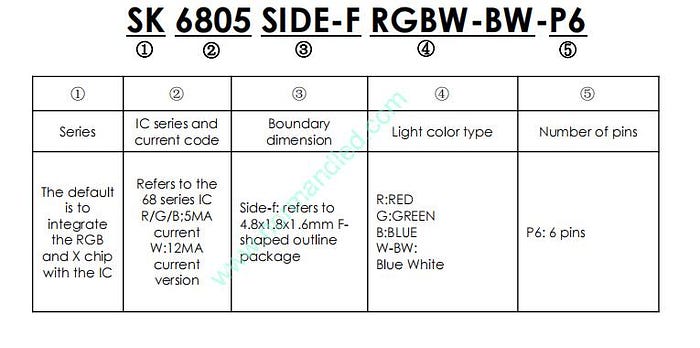

Let’s start by learning the name SK6805SIDE-FRGBW

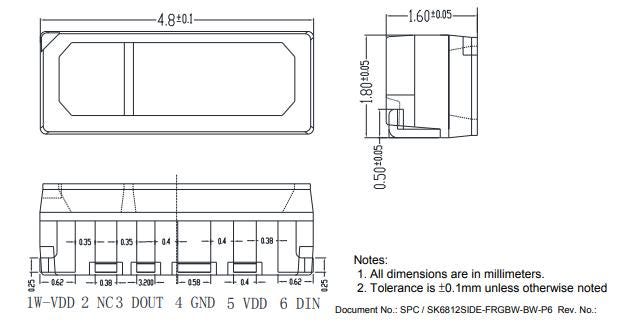

you can see they use 4018 SMD LED pacakged , and we use Side-F mean 4018smd .and they have 4 channel , RGB channel is 9ma , White Color channel is 18ma.as white color can reach high current , then lumen can reach 6–11lm/chip , so SK6805 SIDE-FRGBW not only can be a decorative lighting , but also can be illumination lighting .
And as they have 4channel , so they are 32bit rather than 24bit ,which is different from another SK6812 side led .

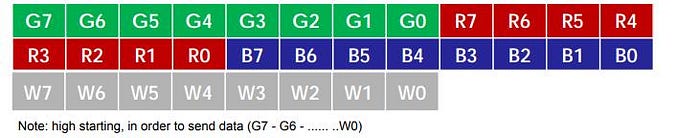

And as it is RGBW , so the structure of Data is GRBW,rather than GRB.

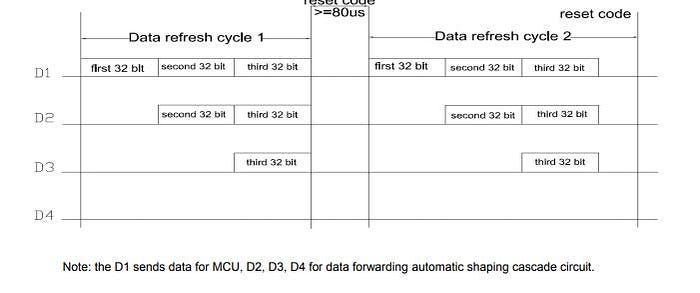

And the below is the transmission
